Description

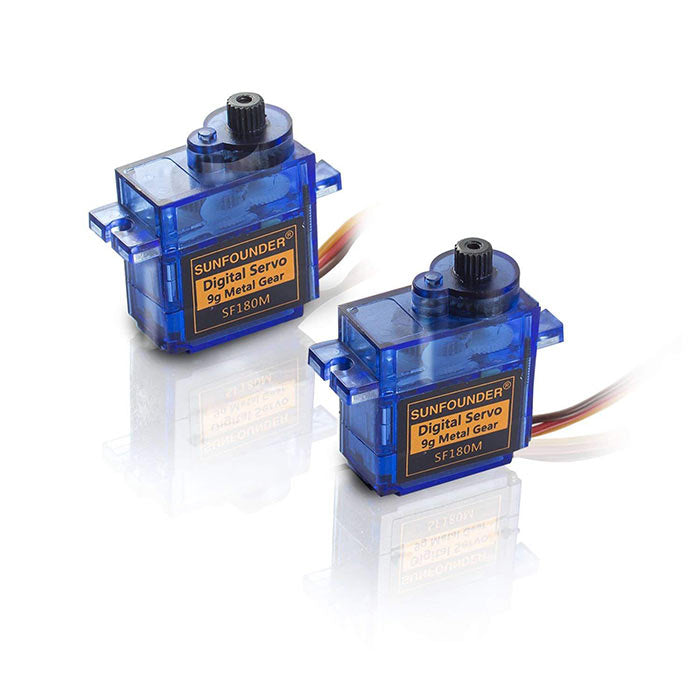

9g servo metal gear SunFounder 9g Metal SF180M Digital Semi-metal Micro Servo (2 pack)High precision semi metal gears with hard anodizing High performance digital standard servo Operating Voltage Range is 4. 8V~6. 0V. Operating travel: 1805 Suitable for helicopter, airplane, boat, robot and a variety of R C Toys Test Environment Standard Every characteristic of the inspection must be normal temperature and humidity carry out the test, temperature 255 and relative humidity 6510% of judgment made in accordance with this specification
- High-precision semi-metal gears with hard anodizing
- High performance digital standard servo
- Operating Voltage Range is 4.8V~6.0V.
- Operating travel: 180°±5°
- Suitable for helicopter, airplane, boat, robot and a variety of R/C Toys
Test Environment Standard
Every characteristic of the inspection must be normal temperature and humidity carry out the test, temperature 25±5℃ and relative humidity 65±10% of judgment made in accordance with this specification standard testing conditions.
Electrical Specification
- Operating speed(at 4.8V no load): 0.11 Sec/60°
- Running current(at 4.8V no load): 90 mA
- Stall torque(at locked 4.8V): 2.5 kg-cm
- Stall current(at locked 4.8V): 600 mA
- Idle current(at stopped 4.8V): 3 mA
- Running life(at no load 4.8V): 100000 times
- Operating speed(at 6.0V no load): 0.09 Sec/60°
- Running current(at 6.0V no load): 100 mA
- Stall torque(at locked 6.0V): 3 kg-cm
- Stall current(at locked 6.0V): 730 mA
- Idle current(at stopped 6.0V): 3 mA
Note: Running current(at no load) definition is the average value when the servo running with no load.
Control Specification
- Control system: Pulse width modification
- Operating travel: 180°±5°
- Neutral position: 1500 μ sec
- Rotating direction: Clockwise(When 1000~2000μ sec)
- Pulse width range: 750~2250 μ sec
- Maximum travel: Approx 140 °(When 750~2250 μ sec)
Mechanical specification
- Connector wire length: 190±5 mm
- Limit angle: 200°±10°
- Weight: 9 grams(without servo horn and screw)
- Connector wire gauge: #28 AWG
- Horn gear spline: 21T
- Horn type: Two blades, One blade, Circle
Package List
- SF180M Semi-metal Digital Servo Motor x 2
